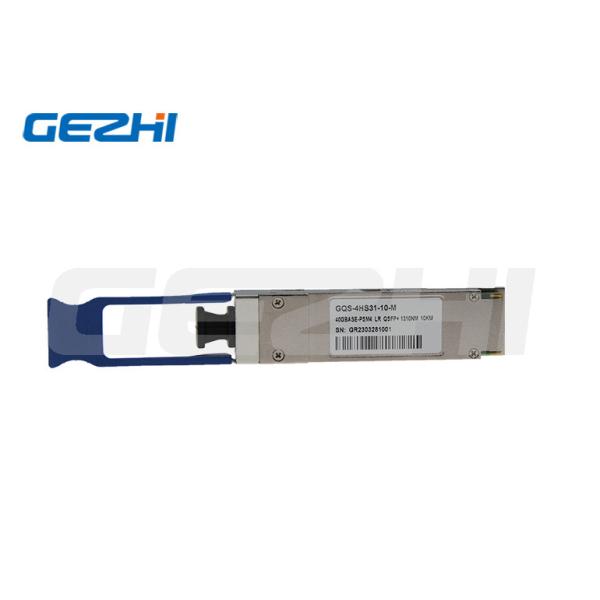

40G QSFP+ LR4 1310nm 10km SMF Fiber Transceiver Module
Description
This product is a transceiver module designed for 2m-10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.
The product is designed with form factor, optical/electrical connection and digital diagnostic int
Features
4 channels full-duplex transceiver module
Up to 11.2Gbps data links per channel
Maximum link length of 10Km
4 CWDM lanes MUX/DEMUX design
Built-in digital diagnostic functions
Hot-pluggable QSFP+ form factor
Single 3. 3V power supply
Operating temperature: 0℃ to 70℃
RoHS 6 compliant(lead free)
Digital Diagnostic Monitor(DDM)
Power Consumption < 2W
Application
Switch, router and HBAs
4CH SDR, DDR and QDR
Client-side 40G Telecom Connections
Transmitter Optical Characteristics
| Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
| Wavelength Assignment |
L0 |
1264.5 |
1271 |
1277.5 |
nm |
|
| |
L1 |
1284.5 |
1291 |
1297.5 |
nm |
|
| |
L2 |
1304.5 |
1311 |
1317.5 |
nm |
|
| |
L3 |
1324.5 |
1331 |
1337.5 |
nm |
|
| Transmitter |
| Side-mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
|
| Total Average Launch Power |
PT |
- |
- |
8.3 |
dBm |
|
| Average Launch Power, each Lane |
|
-7 |
- |
2.3 |
dBm |
|
| Optical Modulation Amplitude, each Lane |
OMA |
-4 |
- |
+3.5 |
dBm |
|
| Difference in Launch Power between any two Lanes (OMA) |
|
- |
- |
6.5 |
dB |
|
| Launch Power in OMA minus Transmitter and Dispersion Penalty (TDP), each Lane |
|
-4.8 |
- |
|
dBm |
|
| TDP, each Lane |
TDP |
|
|
2.3 |
dB |
|
| Extinction Ratio |
ER |
3.5 |
- |
- |
dB |
|
| Relative Intensity Noise |
Rin |
- |
- |
-128 |
dB/Hz |
12dB reflection |
| Optical Return Loss Tolerance |
|
- |
- |
20 |
dB |
|
| Transmitter Reflectance |
RT |
|
|
-12 |
dB |
|
| Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} |
|
{0.25,0.4,0.45,0.25,0.28,0.4} |
|
|
| Average Launch Power OFF Transmitter, each Lane |
Poff |
|
|
-30 |
dBm |
|
| Receiver |
| Damage Threshold |
THd |
3.3 |
|
|
dBm |
1 |
| Average Power at Receiver Input, each Lane |
|
-13.7 |
|
2.3 |
dBm |
|
| Receiver Reflectance |
RR |
- |
- |
-26 |
dB |
|
| Receiver Power (OMA), each Lane |
|
- |
- |
3.5 |
dBm |
|
| Stressed Receiver Sensitivity in OMA, each Lane |
|
- |
- |
-9.9 |
dBm |
|
| Receiver Sensitivity, each Lane |
SR |
- |
- |
-11.5 |
dBm |
|
| Difference in Receive Power between any two Lanes (OMA) |
|
|
|
7.5 |
dB |
|
| Receive Electrical 3 dB upper Cutoff Frequency, each Lane |
|
|
|
12.3 |
GHz |
|
| Conditions of Stress Receiver Sensitivity Test2 |
| Vertical Eye Closure Penalty, each Lane |
|
|
1.6 |
|
dB |
|
| Stressed Eye Jitter, each Lane |
|
|
0.3 |
|
UI |
